TD-H 系列蜂巢轉輪傳輸除濕機主要是用來對吸濕性較強的工程塑料進行高效率的除濕作業。本公司所采用的蜂巢轉輪在理想狀態下露點可達到 -40℃; 全系列采用 P.I.D. 溫控系統為標準裝備，另提供 PLC 控制搭配 LCD 觸控式人機界面供選配，提供可定時監控機器除濕效果的露點計供選配，該系列品共有 14 種機型，******干燥風量可達 4000m3/hr
The TD-H series honeycomb dehumidifiers are mainly used to dry hygroscopiengineering plastics. A honeycomb-rotor is used in this series to offer effective dryingWe offer two types of honeycomb rotors:H4 and H5 models that, under ideal conditionscan supply dehu?midified dry air with a dew-point down to -40C respectivelyThe SD-H series offers accurate P.l.D temperature control as standard, with LCD touchscreen and dew-point monitor as optional features. This series comprises 14 models ofhoneycomb dehumidifiers, the largest of which can provide dry air up to a volume of4000m3/hr.
該系列采用 P.I.D. 溫度控制系統，可精確控制再生溫度 ;
該系列除濕系統采用雙冷卻器結構，確保更低回風溫度及露點 ;
可選配干燥電熱與溫控表，搭配干燥料桶可對原料進行除濕干燥作業 ;
內部裝有回風過濾器，確保蜂巢轉輪不受原料粉塵污染 ;
This series use P.I.D temperature control system, hasregenerating temperature settings and real temperaturedisplay function.
Equips with dehumidifying heater and temperature controgauge as options to dry and dehumidify the raw material.
The dehumidifying system of the TD-H series featurestwo condensers to ensure a low return air temperatureand low dew-point.
Main power switch with machanical chain lock function.

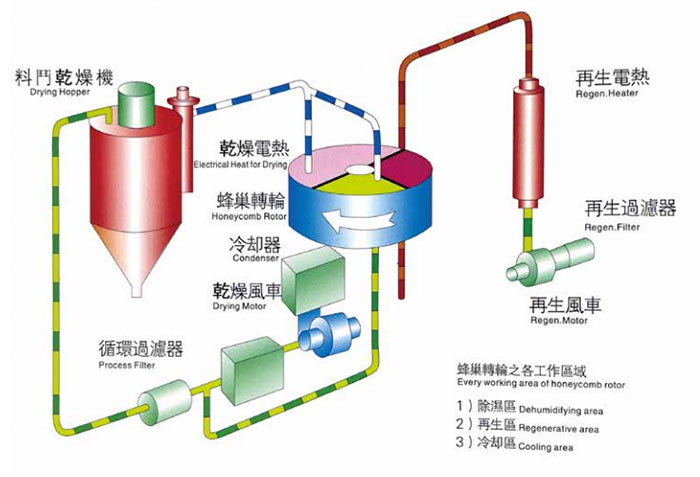

蜂巢轉輪的主體由陶瓷及有機添加劑制成之陶質蜂巢構成再以分子篩及矽膠基本材料經高溫結晶使之表面堅硬并強力吸附蜂巢內部故不會如同一般筒裝或轉盤式分子篩老化后產生粉粒隨干燥風吹入干燥桶污染塑料 , 而且蜂巢傳輸之壽命無限制又可以清洗不像一般分子即易于飽和或老化必須經常更換 , 潮濕回風穿過蜂巢傳輸的無數小孔時水份將迅速被分子篩吸收故當它離蜂巢時已被完全除溫并達到非常較低之露點的干燥風再生與除濕原理相似而且同時進行只是再生風流向相反。
The main body of the honeycomb wheel is made of ceramic and organic additives made of ceramic honeycomb, which is then made of molecular sieve and silicone basic materials through high-temperature crystallization to make the surface hard and strongly adsorb the interior of the honeycomb. Therefore, it will not produce powder particles after aging like ordinary cylindrical or rotary molecular sieve, which will be blown into the drying bucket by the drying air to pollute the plastic. Moreover, the lifespan of the honeycomb transmission is unlimited and can be cleaned. Unlike ordinary molecules, which are easy to saturate or age, they must be replaced frequently. When the humid return air passes through the countless small holes of the honeycomb transmission, the water will be quickly absorbed by the molecular sieve. Therefore, when it leaves the honeycomb, it has been completely warmed and reaches a very low dew point. The princi?ple of drying air regeneration and dehumidification is similar, and the regeneration air flow is opposite at the same time.

|
|
